Harloff SureDry Cabinet with 14 Endoscope Tracking System and Dri-Scope Aid®, Key Lock, SC8036TD-T3316D
Harloff SureDry Cabinet with 14 Endoscope Tracking System and Dri-Scope Aid®, Key Lock, SC8036TD-T3316D
SKU:SC8036TD-T3316D
Couldn't load pickup availability
Free Shipping & No Sales Tax except Oklahoma.
Shipping Information
Shipping Information
Order Processing with Care:
At KarePlus818 Global, we begin preparing your order within 1–2 business days of purchase. Our team works diligently to ensure everything is on track for a smooth delivery.
Estimated Delivery Time:
You can typically expect your order to arrive within 7–12 business days. For freight shipments, we include FREE liftgate service to make curbside delivery simple and stress-free.
Need to Delay Shipping?
We’ve got you covered! If you’d like to secure your order now and ship later, just let us know. We’re happy to hold your items at no extra charge until you’re ready.
A Quick Note on Availability
Due to high demand, some items may take a bit longer to arrive. For the most up-to-date availability or to check the status of your order, feel free to contact us anytime—we’re here to help!
Description

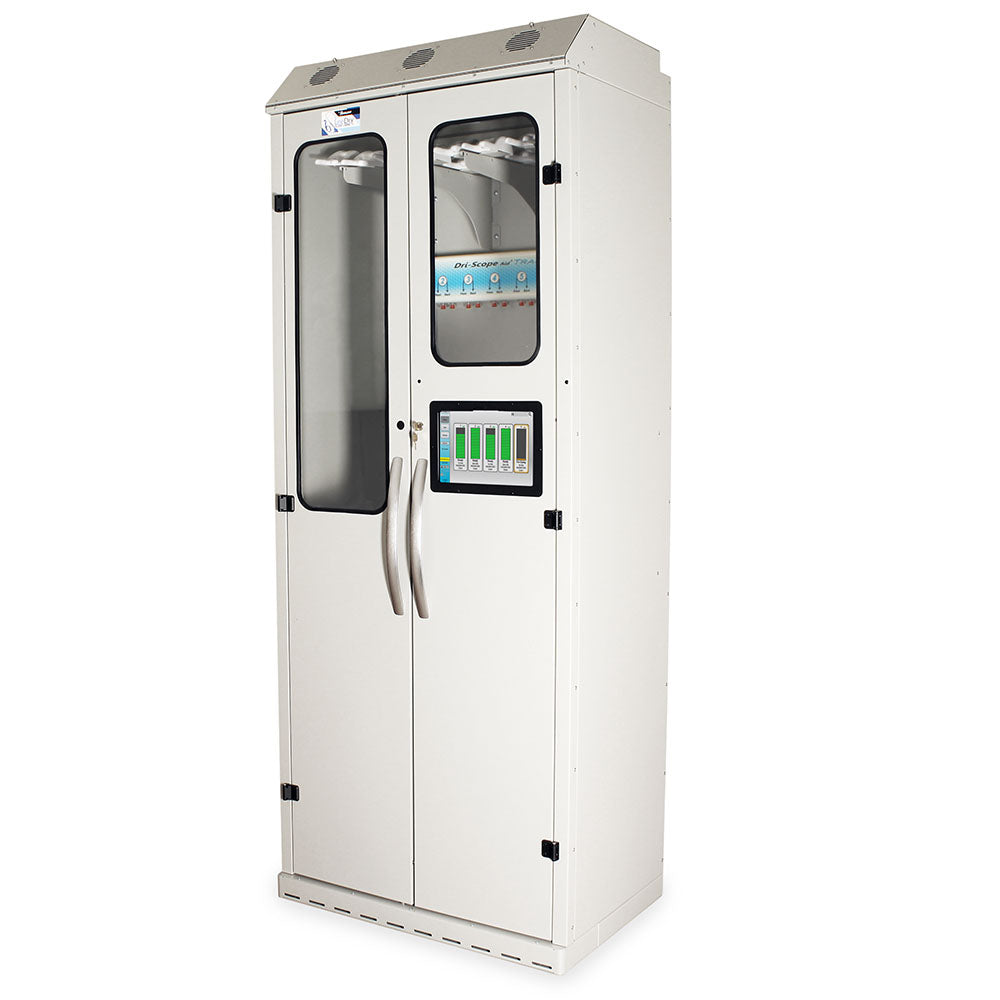

The SC8036TD-T3316D incorporates a state-of-the-art scope cabinet tracking system that maintains records of scope drying events, user access, check-ins, check-outs and tracks other customizable settings unique to each endoscope. At a glance the color touch screen digital display, accessed by an authorized passcode, displays scope inventory, reprocessing status, scope processing times and adjustable timing options including drying time, pre-drying time, venting time, hang time limits and more.
The scope tracking cabinet itself dries endoscope exteriors with HEPA filtered positive pressure forced air, using three intake fans and two exhaust fans. The Dri-Scope Aid® system, the industry leading internal lumen drying system, pumps additional HEPA filtered air through the internal endoscope channels to fulfill forced air recommendations based on AORN, SGNA and AAMI guidelines (including ANSI/AAMI ST91:2021 updated guidelines).
This scope drying and tracking cabinet provides a complete solution for facilities requiring optimal endoscope drying capabilities combined with high level digital tracking features.

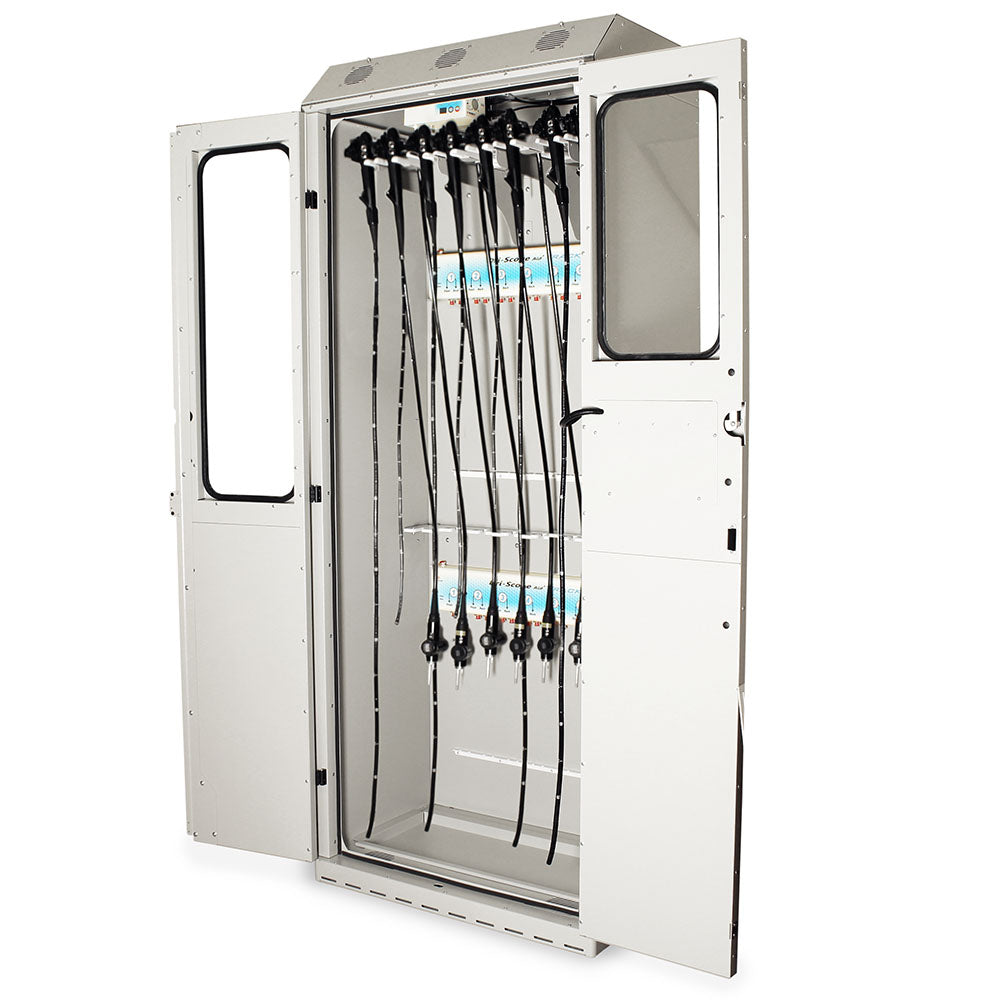

This SureDry smart scope cabinet with an integrated scope cabinet tracking system has a fourteen-scope capacity and includes the industry best positive pressure HEPA filtered drying system. Inside air is replaced inside the cabinet up to four times per minute. This scope cabinet tracking cabinet meets or exceeds AORN, SGNA, and AAMI guidelines.
Manufacturer Video
Specification
Specifications & Details
• Industries most spacious scope cabinet allows for easy hanging and retrieval of all scope types
• Positive pressure fully redundant fan system
• Unit features three intake fans and two exhaust fans
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Holds sixteen scopes with secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Medical grade electrical system
• Tempered glass double doors
• Key lock with two keys
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other international shipments.
• 1-Year Limited Warranty on any bought-out parts
TRACKER FEATURES & BENEFITS
• Digital display maintains a list of scopes by drying status, with displays of scope processing times
• Intelligent automated scheduler continuously processes scopes as long as they remain checked into the system
• Includes default or customizable settings and drying options unique to each endoscope
• Scope tracker maintains records of scope drying events, user access, check-ins and check-outs
• Color touch screen access by authorized personnel is completed by passcode, with adjustable session timeout settings and options for passcode retrieval if forgotten
• Various adjustable timing options controlled through the color touchscreen including drying, pre-drying and venting time settings, hang time limits, endoscope removal/load delay timing, etc
• At a glance, display shows scope inventory and reprocessing status including the time until scope expiration requiring further reprocessing
• Slot display order settings displayed on the status screen per user preferences
• Configurable replacement times for tubing and pump filter, with overdue warnings/indicator lights
• Downloadable export files available for endoscope management, user lists and more
• Customizable Hang Time Monitor adjusts the number of days your scopes hang; you will be alerted when a scope is about to expire
Dri-Scope Aid® Features
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation
Dri-Scope Aid® Ease of Operation
• Hands-free operation
• Visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Filter replacement indicator light
• Dries 4 to 16 endoscopes
• Dri-Scope Aid®, industry leading internal lumen drying system
• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close
• 93” H x 36” W x 24” D (236.2 cm x 91.4 cm x 61 cm)
• Weight: 337 lbs (153 kg)
• Approximate shipping dims: 33" H x 50" W x 97" D (83.8 cm x 127 cm x 246.4 cm)
• Approximate shipping weight: 492 lbs (223 kg)
Manufacturer Manual
Additional information
| Weight | 337 lbs |
|---|---|
| Dimensions | 24 × 36 × 93 in |
